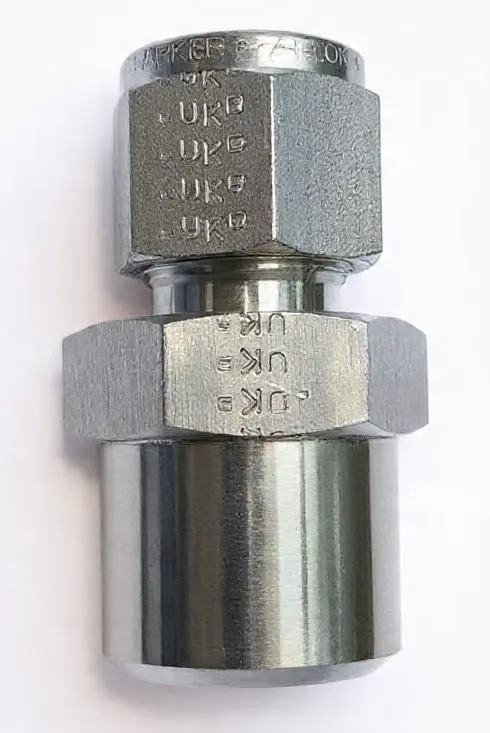

8-3/4 ZHLW2-316L
DESCRIPTION:
A straight instrumentation tube fitting designed to connect a 3/4 in. tube to a 3/4 in. butt-weld pipe connection. Manufactured from 316L stainless steel, it provides a secure, leak-tight transition from compression tube systems to welded piping in high-pressure and corrosive process applications.
TECHNOCAL DESCRIPTION:
| Product Type | Buttweld Connector |
| Connection Type | Tube Compression × Butt-Weld End |
| Configuration | Straight |
| Tube Size | 3/4 in. OD |
| Buttweld End Size | 3/4 in. Pipe (Schedule 80 butt-weld unless otherwise specified) |
| Material | Stainless Steel AISI 316L |
| Series | A-LOK Instrumentation Tube Fitting Series |
| Sealing Method | Double Ferrule Compression Seal |
| Pressure Rating | Up to approximately 5,800 psi (400 bar), depending on tubing material and operating conditions. |
| Applications | Instrumentation tubing, process control systems, oil & gas, chemical processing, petrochemical plants, power generation, offshore control panels, and analytical systems. |
| Key Features | Corrosion-resistant 316L stainless steel, leak-tight double-ferrule design, vibration resistance, high-pressure capability, easy installation, and compatibility with welded piping systems. |
