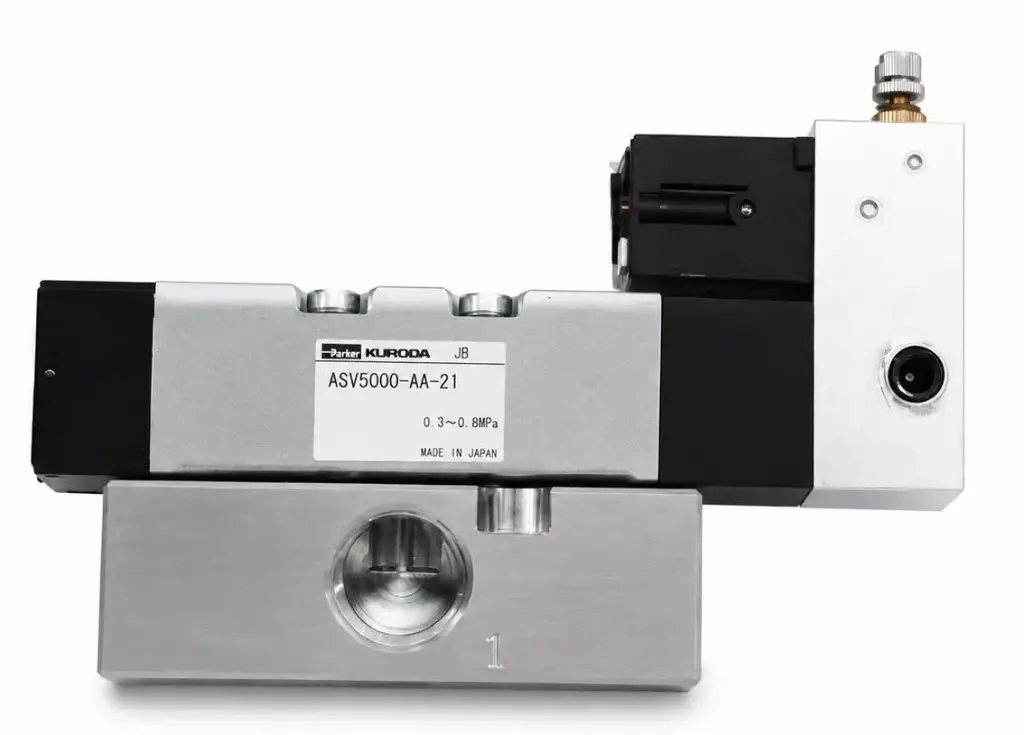

442C910006
DESCRIPTION:
The Parker Hannifin 442C910006 Air Saver Unit is a pneumatic air-saving valve designed to reduce compressed air consumption in industrial blow-off, drying, cleaning, cooling, and conveying applications. It converts a continuous compressed air stream into high-efficiency pulses, maintaining effective blowing performance while significantly reducing air usage, energy costs, and operating expenses. The unit operates without electrical power and can be easily retrofitted into existing pneumatic systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Parker Hannifin |
| Part Number | 442C910006 |
| Model | ASV5000-AA-21 |
| Product Type | Pneumatic Air Saver Unit |
| Function | Pulsed air blow valve (Normally Closed) |
| Operating Principle | Converts continuous airflow into pulsed airflow |
| Media | Clean, dry, non-lubricated compressed air |
| Flow Capacity | 176.6 SCFM (approx. 5,000 L/min) |
| Port Size | 1/2 in BSPP (G1/2) |
| Operating Pressure | 0–116 psi (0–8 bar) |
| Operating Temperature | 23 to 122°F (-5 to 50°C) |
| Power Requirement | None (pneumatic operation) |
| Actuation | Pneumatic |
| Installation | Inline mounting |
| Typical Applications | Blow-off, drying, cleaning, cooling, part ejection, material conveying |
| Primary Benefit | Reduces compressed air consumption while maintaining effective air blow performance |
| Recommended Installation | Within 1 m of the blow nozzle (maximum 3 m) for optimum performance. |
