4-4 FE-316L
Description:

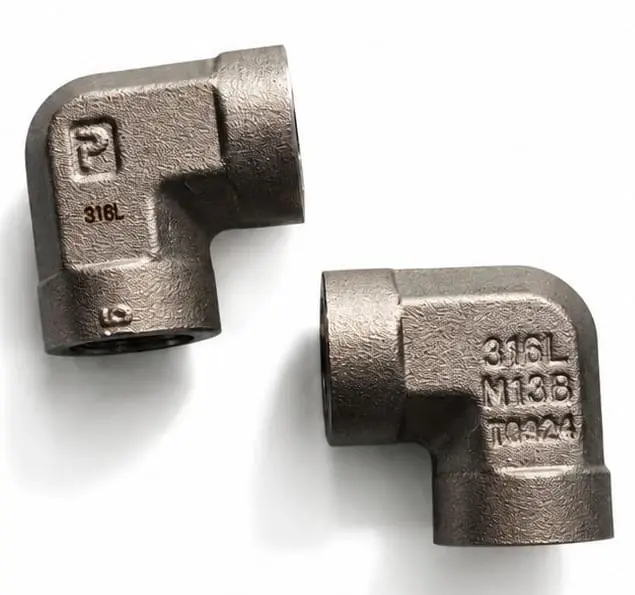

4-4 FE-316L – 1/4 in FNPT 90° Elbow is a Parker female pipe elbow designed to connect two 1/4-inch Female National Pipe Taper (FNPT) threaded connections at a 90° angle. Manufactured from 316L stainless steel, it provides excellent corrosion resistance, high mechanical strength, and reliable leak-tight performance in instrumentation, hydraulic, pneumatic, and process piping systems.
Technical Description
| Manufacturer | Parker Hannifin |
| Component Type | Female Pipe Elbow |
| Configuration | 90° Elbow |
| Function | Changes the direction of fluid flow by 90° while connecting two female NPT threaded components. |
| Connection Size | 1/4 in FNPT × 1/4 in FNPT |
| Connection Type | Female National Pipe Taper (FNPT) |
| Thread Standard | ANSI/ASME B1.20.1 NPT |
| Material | 316L Stainless Steel |
| Body Style | Forged/Machined 90° Elbow |
| Seal Method | Tapered pipe threads; typically used with PTFE tape or thread sealant for leak-tight sealing |
| Pressure Rating | Suitable for high-pressure instrumentation and hydraulic service (actual rating depends on temperature and application) |
| Operating Temperature | Compatible with a wide range of temperatures based on 316L stainless steel properties |
| Corrosion Resistance | Excellent resistance to corrosion, oxidation, chlorides, and many industrial chemicals |
| Media Compatibility | Hydraulic fluids, compressed air, water, steam, inert gases, chemicals, and compatible process fluids |
| Applications | Instrumentation systems, hydraulic and pneumatic systems, chemical processing, oil & gas, power generation, water treatment, and general industrial piping |
| Features | High-strength 316L stainless steel construction, corrosion-resistant, durable threaded connection, compact 90° design, easy installation, suitable for demanding industrial environments |
