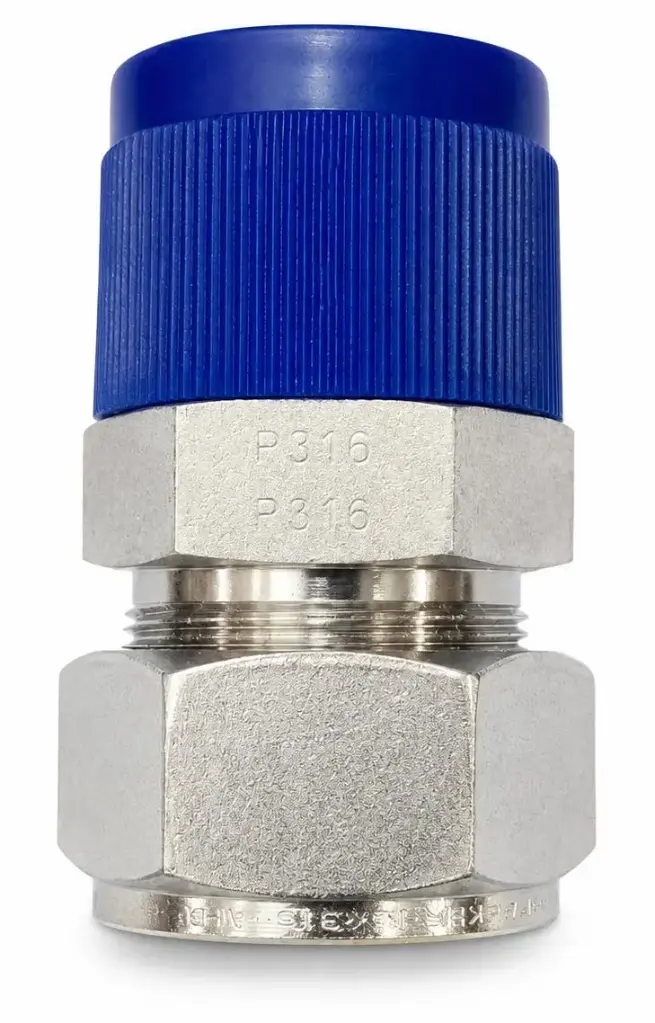

16MSC20N-316
DESCRIPTION:
The Parker 16MSC20N-316 is a straight A-LOK® 316 stainless steel NPT male connector designed to provide a secure, leak-tight connection between instrumentation tubing and male NPT threaded ports in high-pressure fluid and gas systems. It offers excellent corrosion resistance and reliable performance in demanding industrial applications
TECHNICAL DESCRIPTION:
| Parameter | Specification |
|---|---|
| Manufacturer | Parker Hannifin |
| Part Number | 16MSC20N-316 |
| Product Series | A-LOK® |
| Product Type | NPT Male Connector |
| Configuration | Tube × Male NPT Straight Connector |
| Connection Type | Double Ferrule Compression × Male NPT |
| Tube Outside Diameter | 1 in (25.4 mm) |
| Male Thread Size | 1-1/4 in NPT |
| Material | 316 Stainless Steel |
| Ferrule Type | Two-Ferrule Compression Design |
| Shape | Straight |
| Operating Pressure | Up to approximately 4,900 psi (depending on tubing and operating conditions) |
| Operating Temperature | -255°C to 649°C (-425°F to 1200°F), depending on tubing material and application |
| Fluid Compatibility | Liquids, gases, steam, hydrogen, oils, and chemicals compatible with 316 SS |
| Leak Performance | Leak-tight, vibration-resistant seal |
| Typical Applications | Instrumentation, process control, chemical plants, oil & gas, petrochemical, power generation, hydrogen systems |
| Features | Corrosion resistant, reusable, easy installation, excellent vibration resistance, heat code traceable material |
