12-8F5OMXS-AV
DESCRIPTION:

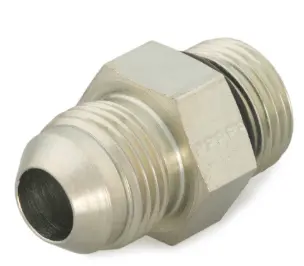

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.
Technical Specifications
| Connection Type: | 37° Flare, Tube to SAE-ORB |
| Specifications Met: | SAE J514 |
| Maximum Dynamic Pressure: | 5000 psi |
| Shape: | Straight |
| Connection 1 Size: | Male 37° Flare |
| Connection 1 Tube Outside Diameter: | 3/4 inch, 18, 20 mm |
| Connection 2 Size: | Male SAE-ORB |
| Connection 2 Tube Outside Diameter: | na |
| Connection 2 Thread Size: | 3/4-16 inch, na |
| Connection 3 Size: | na |
| Connection 3 Tube Outside Diameter: | na |
| Connection 3 Thread Size: | na |
| Connection 4 Size: | na |
| Connection 4 Tube Outside Diameter: | na |
| O-Ring Material: | 90 Durometer Nitrile |
| Body Material: | Steel |
